Thermal Conductive Silicone For Electronics High Thermal Conductivity 2.0w/M·K Silicone Potting Compound Potting Factory Direct Supply
Product Overview for Thermally Conductive Potting Compound:
HN-8820 is a two-component, addition-cure silicone potting gel offering high thermal conductivity (2.0 W/m·K) and superior electrical insulation. With a 1:1 mix ratio and easy processing, it provides reliable protection for electronics operating in harsh environments from -40°C to 150°C.
Product Features for Thermally Conductive Potting Compound:
1. Good high temperature resistance
2. Anti-aging resistance
3.
Excellent insulation properties,
4. Wide temperature range (-40℃-150℃),
5. Waterproof and moisture-proof
Technical Parameters for Thermally Conductive Potting Compound:
Mix Ratio: 1:1 (A:B)
Viscosity: 5000–8000 cP
Pot Life (25°C): 1–2 hours
Cure Time (25°C): 2–4 hours
Hardness: 45–50 Shore A
Flame retardant rating (V) (UL94):V-0
Applications for Thermally Conductive Potting Compound:
Fields such as new energy vehicles (including battery management systems and electronic control modules), communication equipment, LED lighting, power modules, and various sensors and optoelectronic devices.
Handling Guide for Thermally Conductive Potting Compound:
Mix A and B 1:1 by weight, degas under vacuum, pour into clean housing, and cure at room temperature or 80°C for faster results.
Important Notes for Thermally Conductive Potting Compound:
Avoid contact with sulfur, tin, amines, or acidic substances.
Packaging & Storage for Thermally Conductive Potting Compound:

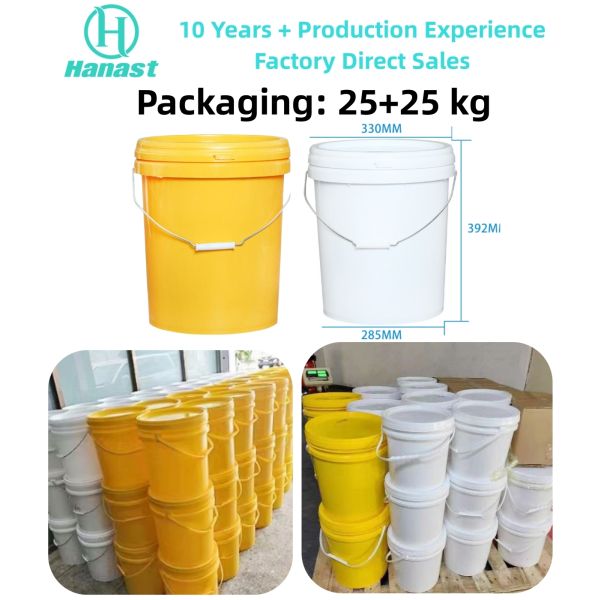

25kg/barrel. Store in a cool, dry place. Shelf life: 6 months.
FAQ for Thermally Conductive Potting Compound:
Q: Is it suitable for high-voltage applications?
A: Yes, it offers high insulation resistance.
Q: Can I use it for potting transformers?
A: Yes, it’s widely used in network transformers.
Q: Does it resist yellowing?
A: Yes, it offers excellent anti-aging performance.
Q: What is the thermal conductivity?
A: 2.0 W/m·K.
Q: Is it flame retardant?
A: Yes, rated V-0.
